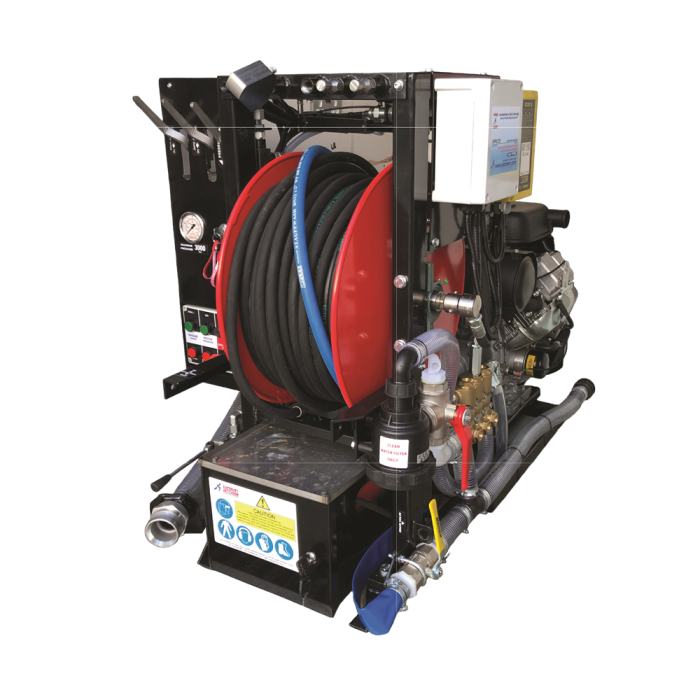

The Superjet Inline Diesel Jetting Pack has been designed primarily for multipurpose jetting vans. The slim design allows the unit to be positioned in a variety of locations allowing more space for CCTV equipment or lining benches etc. Also ideal for those wanting to save space or locate the pack in the middle bulkhead area of the van. Designed with the latest diesel engines and utilizing state of the art pumps.
These packs offer various uses such as drain cleaning, graffiti and stone cleaning, surface preparation, together with a vast array of attachments like our root cutting equipment make this unit an excellent choice.
Optional water tank capacity's
Hydraulic Main jetting Reel
Robust diesell engine
Modular design
Slim design and lightweight
Ideal for multi-purpose vehicles
Compact and Lightweight

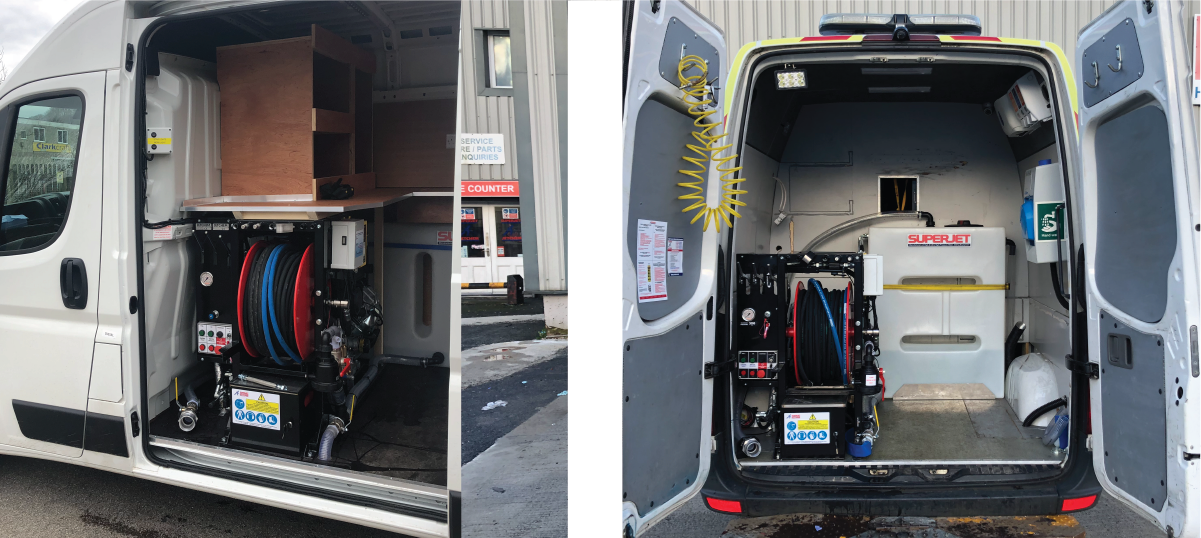

The Diesel Inline jetter has been designed as a space saving jetter, also known as a stack jetter. Providing a much smaller footprint than a standard jetting pack this offers the user more options, such as dual purpose vehicles for cctv or lining applications. An Ultra compact and lightweight jetting pack with a robust diesel engine offering proven reliable performance in a modular design.
Performance Options
MODEL
BAR
PSI
LPM
GPM
Inline Diesel
150
2175
85
18.7
Inline Diesel
210
3045
55
12.1
Inline Diesel
250
3625
58
12.76
Inline Diesel
350
5075
38
8.36
Inline Diesel
500
7250
24
5.28
Easy Maintenance Design
Running and maintaining a jetting machine requires regular servicing and performing daily checks before commencing any work is always good practice. We know the busy world of drainage never stops and that is why we designed and built all our jetting machines with easy maintenance in mind. All the regular checks can be performed simply, with access to filters, oil and antifreeze systems to hand, meaning you can be working as fast as possible.
Bespoke options
With over 30 years of knowledge and expertise within the jetting industry we are able to offer a huge amount of bespoke options when it comes to accessories and additions for each jetting machine. Our research and development teams work closely with our customers to produce a solution for your needs, with our UK based manufacturing facilities providing the quality and expertise required.
Technical Specification
Main Reel
Hydraulic
Hose
91 metres 1/2" Jetting Hose (195ft)
Standard Water Tank Capacity
Choice of capacity
Reel Arrangement
Fixed Hose Reel
Engine
Diesel Engine
Inlet Reel
Optional extra
Engine Power
28kW
Pressure Relief System
Unloader Valve
HD Pump Type
Triplex Plunger Pump
Remote Control
Optional 5 Channel Radio or Foot Control System
Engine Cooling
Liquid Cooled
Frame
Compact Mild Steel, Powder Coated
Frost Protection
Anti-Freeze System
Standard Equipment
2 x Standard Jets, Leader Hose, Micro Jet Kit, Manual
Weights and Dimensions
Approximate Dry Weight*
350 Kg
Standard Build Dimensions
W 700mm x D 1350mm x H 950mm
Approximate Max Weight
500 Kg
Fuel Tank Capacity
15 Litres
* All weights and dimensions are a guide only. Dry weight is excluding fuel and water.
